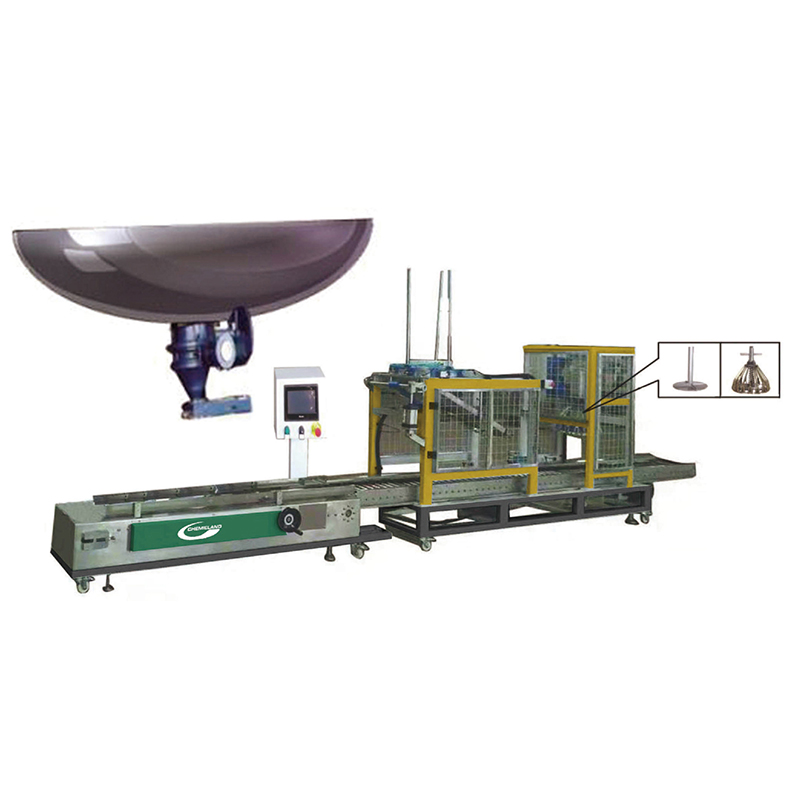

CHPM Putty Filling Line
Features and Uses
Adopting Mettler Toredo brand load cell. Weighing filling measurement accuracy is not affected by the material. The two-stage speed filling of the CHEMIELAND patented filling valve improves the filling speed and accuracy. Automatic or semi-automatic control mode is optional. Suitable for filling liquids and fluid products.
Technical Data Sheet
Filling Scope | 5~20kg |
Weighing Tolerance (g) | ±20g |
Filling Speed | 120 - 180 barrels / hour (as 25kgs per barrel) |
Voltage/Frequency | AC220V, 50/60HZ |
Air Pressure (Mpa) | 0.4-0.6 |
Inlet | DN 50 |
control mode | Automatic / Semi automatic |
